Alwayse Forklift Ball Platform

Improve material handling efficiency with versatile forklift compatibility.

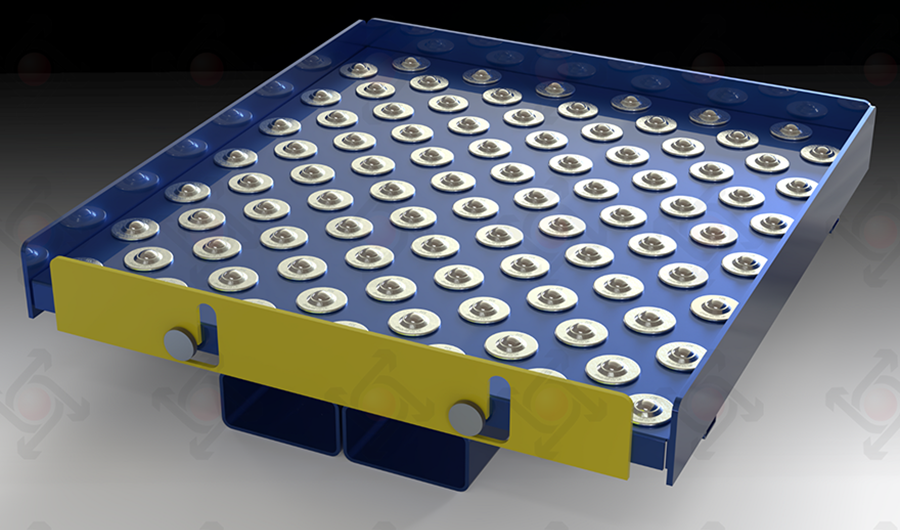

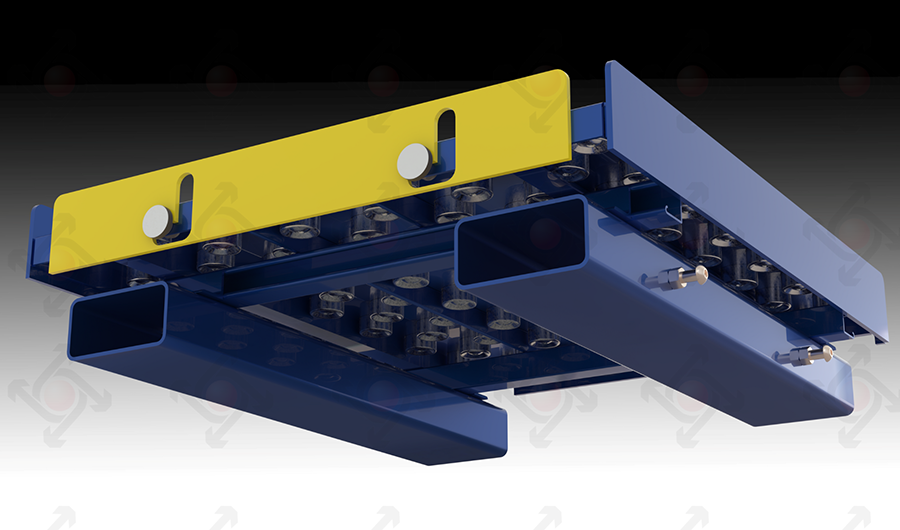

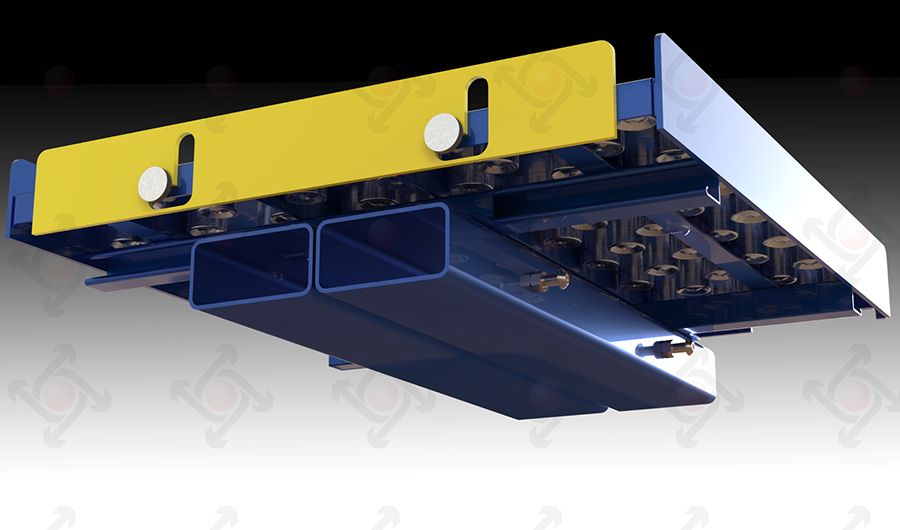

The Alwayse Forklift Ball Platform is designed to enhance the handling of pallets, crates, and heavy goods by combining forklift mobility with the flexibility of a ball transfer surface.

Built with robust steel components and precision-engineered ball transfer units, the platform is an essential tool for operations that demand strength, stability, and smooth movement.

CONTACT US

Interested in this product, get in touch...

ENQUIRE NOW
🔍

Key Benefits

  • Faster Loading and Unloading: The integrated ball transfer units make light work of repositioning heavy items, reducing manual effort and turnaround times.
  • Versatile Fork Compatibility: Adjustable to suit different pallet stacker fork widths, making it ideal for multi-truck operations or changing equipment.
  • Improved Safety: Fixed side and rear guards with a drop-down front panel keep goods secure in transit, reducing the risk of falls or damage.
  • Heavy-duty Performance: With a dynamic load capacity of 540kg and high-quality steel construction, the platform is built for demanding environments.
  • Corrosion-resistant and Durable: Powder-coated finish and zinc-plated components offer long-term protection against wear, corrosion, and industrial conditions.
  • Wide Temperature Tolerance: Operates effectively in extreme cold or heat (from -30°C to +70°C) without compromising performance.

Sizes

The sizes of our Forklift Ball Platforms are provided in the technical data sheet.

Please get in touch if you require a specific size.

We welcome feedback from the market on whether additional standard sizes are required.

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

Technical Data

SPECIFICATION Description
Ball Material 522013 (type 13) chrome steel balls and carbon steel body with bzp finish
Ball Deck Material Thick mild steel with powder coated finish
Side Guards Material Thick steel with powder coated finish yellow RAL1016
Overall Height (mm) 155
Length (mm) 660
Width (mm) 610
Pitch Spacing tbc
Load Ball Diameter (mm) 22.2mm
Effective load per ball (kg) tbc
Total load capacity (kg) 540 (work to SWL of pallet stacker truck used)
Weight (kg) 46
Supplied tbc
