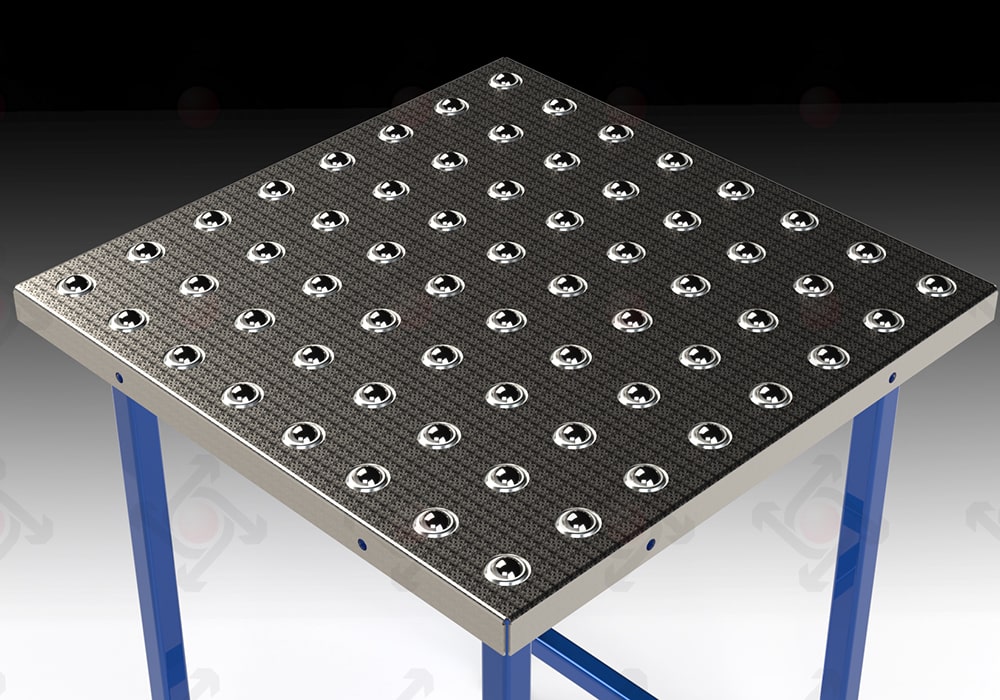

Alwayse Standard Roller Ball Tables

Enhance efficiency with multi-directional load movement using roller balls.

Alwayse premium standard ball unit tables are engineered to provide a reliable and efficient solution for various logistics and material handling applications.

They have been designed to allow smooth, effortless movement of both heavy and light loads across surfaces, reducing the need for manual effort, enhancing workflow efficiency, and supporting workplace ergonomics.

Robust steel construction allows our standard ball unit tables to be seamlessly integrated with gravity and powered conveyors, roller tables, and manual handling systems to ensure a continuous and controlled material flow.

Their multi-directional movement capability allows for precise load positioning and easy transfer between workstations. Operators can rotate and position items with minimal strain, reducing fatigue and the risk of workplace injuries.

This product is ideal for warehouses, tool and battery handling, production, and inspection lines.

CONTACT US

Interested in this product, get in touch...

Key Benefits

  • Effortless handling: Helps reduce lifting manually to allow smooth and controlled movement of heavy or bulky items and materials.
  • Enhanced workflow efficiency: Speeds up material / parcel transfer processes, reducing downtime and improving productivity.
  • Multi-directional movement: Allows easy maneuvering of items in any direction. Ideal for assembly lines, packaging stations / workstations, and warehouses.
  • Improved safety: Minimises physical strain on workers, lowering injury risks associated with manual handling.
  • Seamless system integration: Designed with features to attach to existing material handling setups, such as conveyors and automated workstations as well as each other to create modular set-ups.
  • Durable and customisable: Built to withstand heavy-duty applications with options for additional customisation to meet specific operational needs. Can be built for standalone or integrated into a material handling environment.
  • Shipping: Shipped flat pack to save space and reduce shipping costs.

Available Add-ons

  • Skin: A 2mm thick cover, extending 5mm beyond the table's width and length, and conceals the ball unit flanges. This ensures a smooth passage for irregularly shaped objects, preventing potential snags or damage during transfer, ideally suited for package / parcel movements and sorting.
  • Side Guards: Available as fixed or drop-down options to provide additional safety and load control, helping to contain and guide materials during processing or movement.

Sizes

Please get in touch if you require a specific size.

We are welcoming feedback from the market on whether more standard sizes are required.

Material Types

No two applications are the same hence Alwayse have developed a range of material types that can satisfy all applications from standard to custom requirements.

Find out more

Technical Data

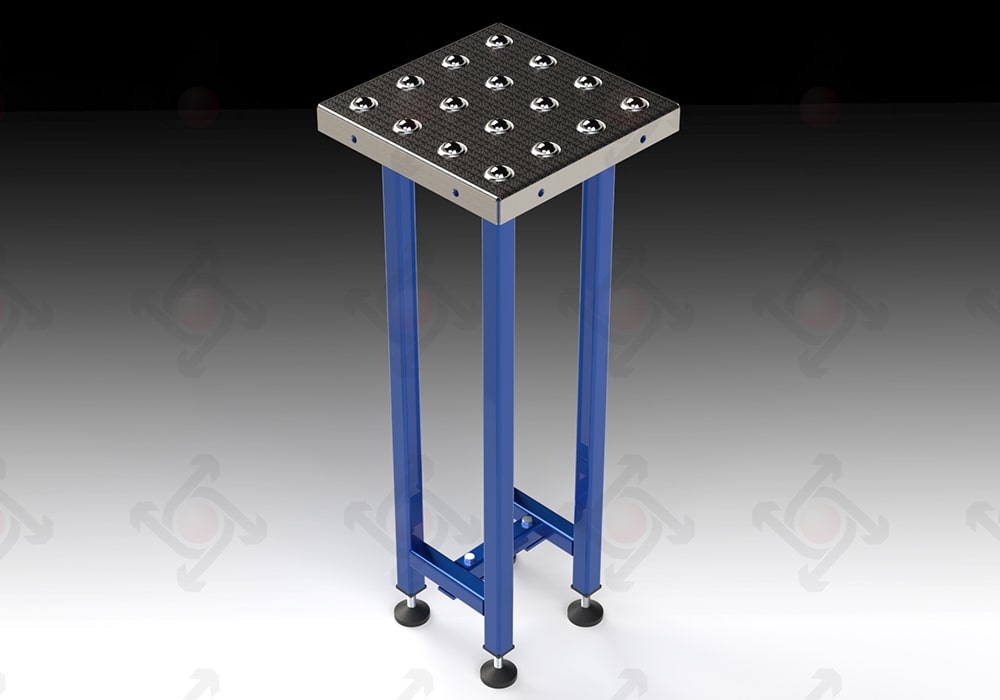

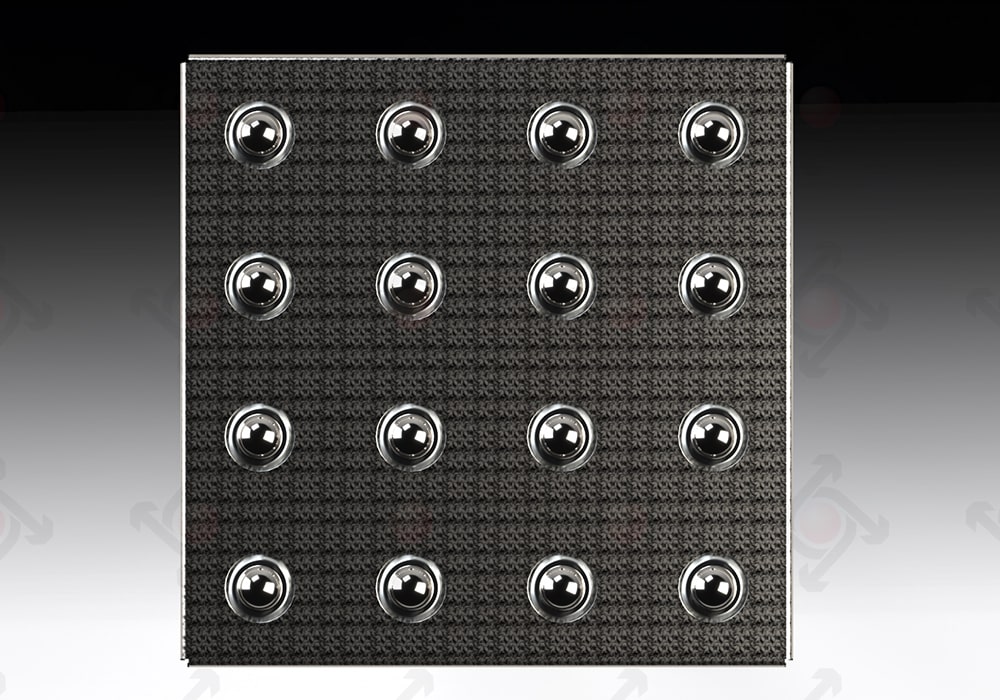

SPECIFICATION 300mm x 300mm
Standard Ball Table

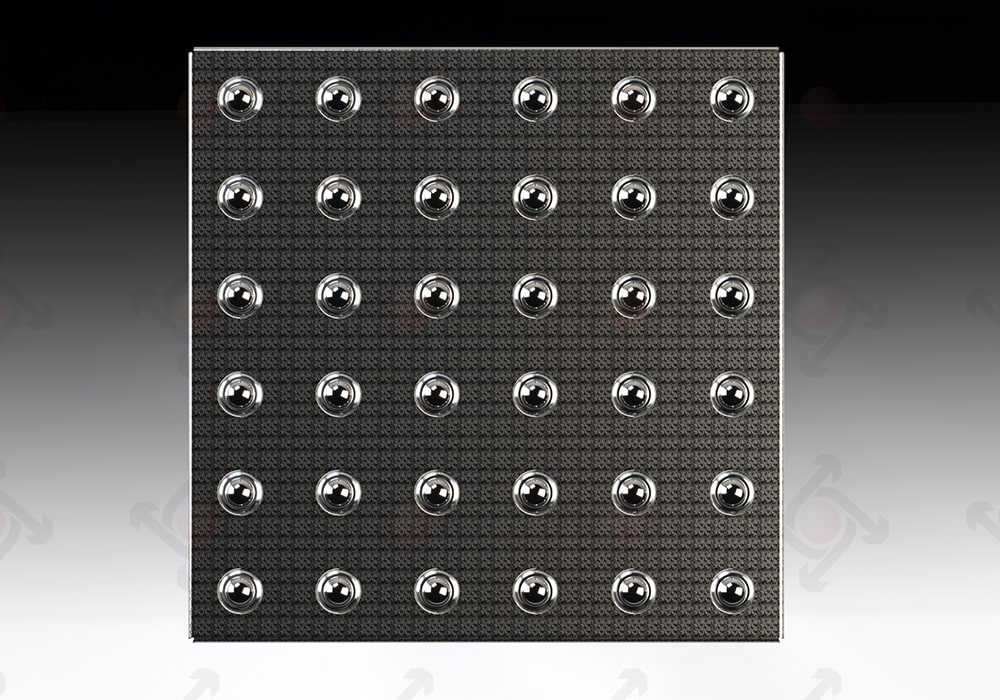

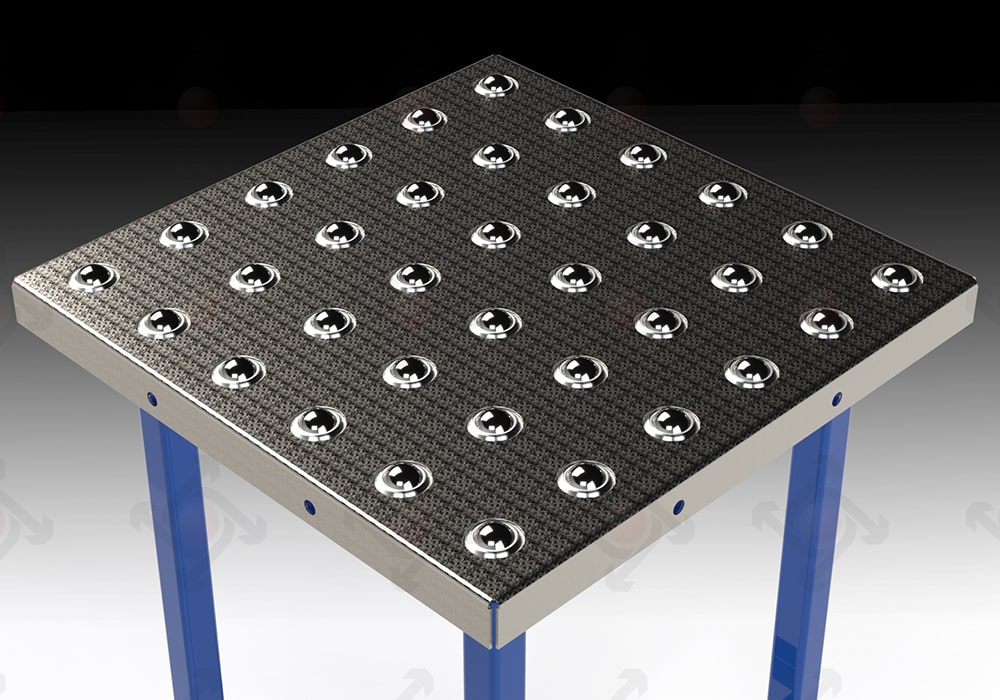

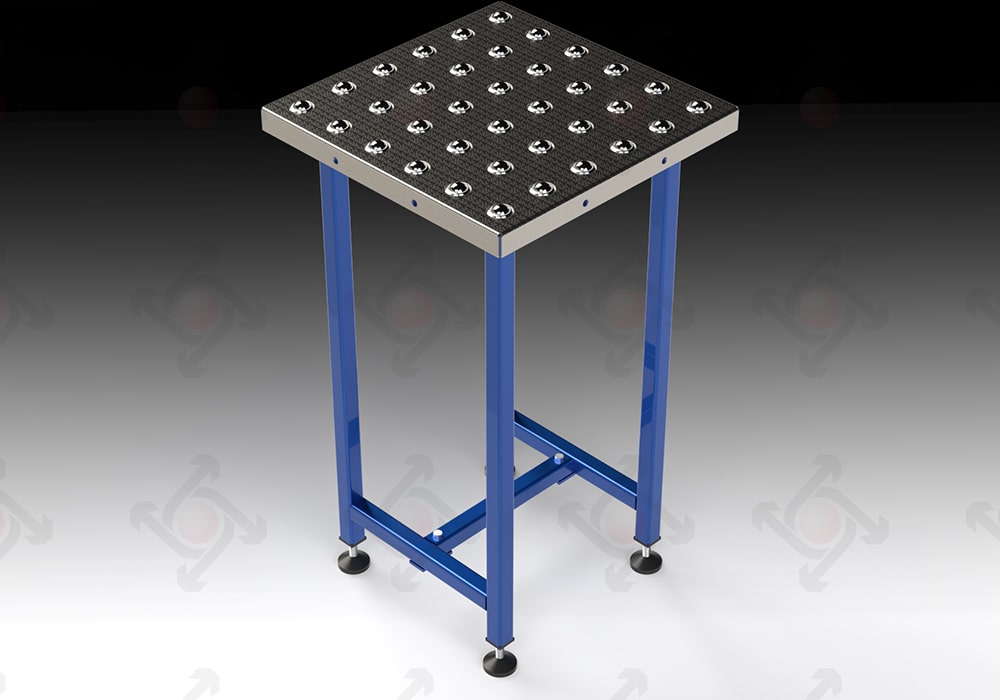

450mm x 450mm
Standard Ball Table
600mm x 600mm
Ball Table
Material Mild steel, powder coated Mild steel, powder coated Mild steel, powder coated

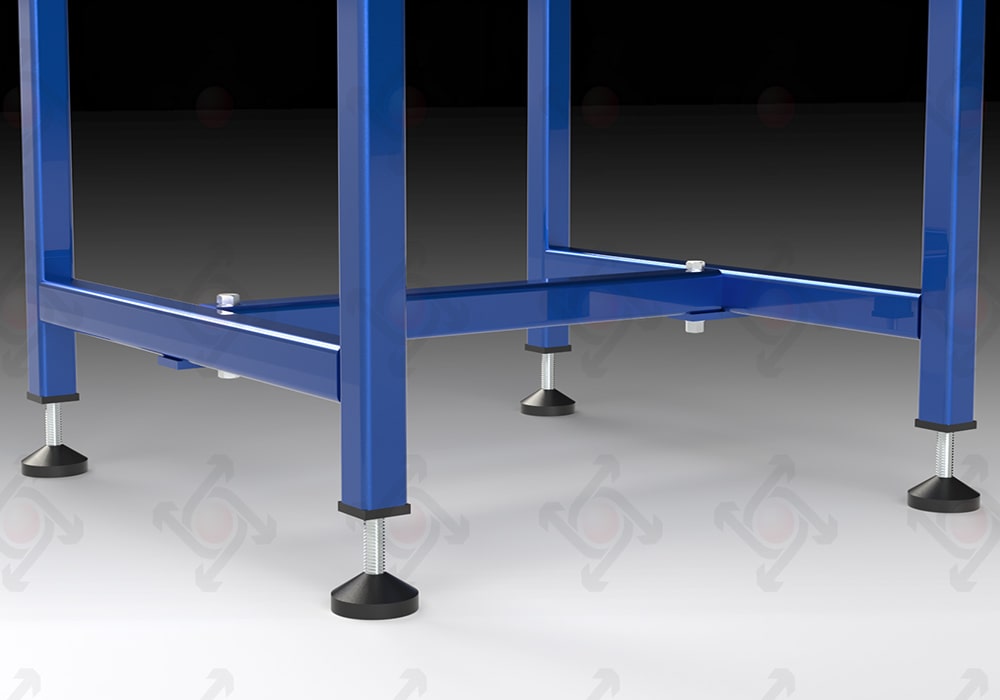

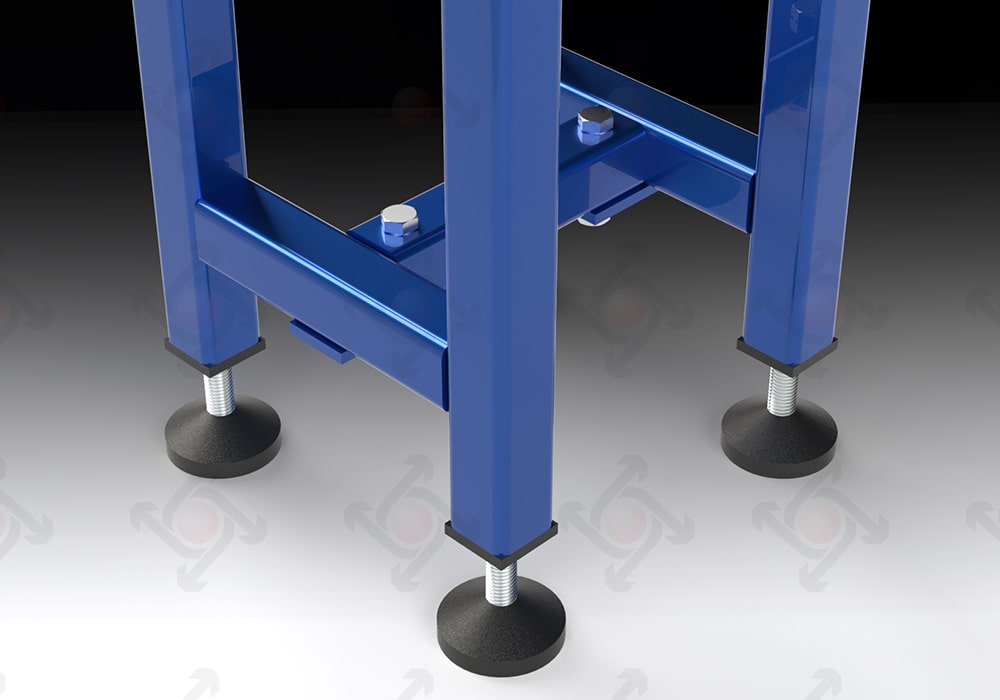

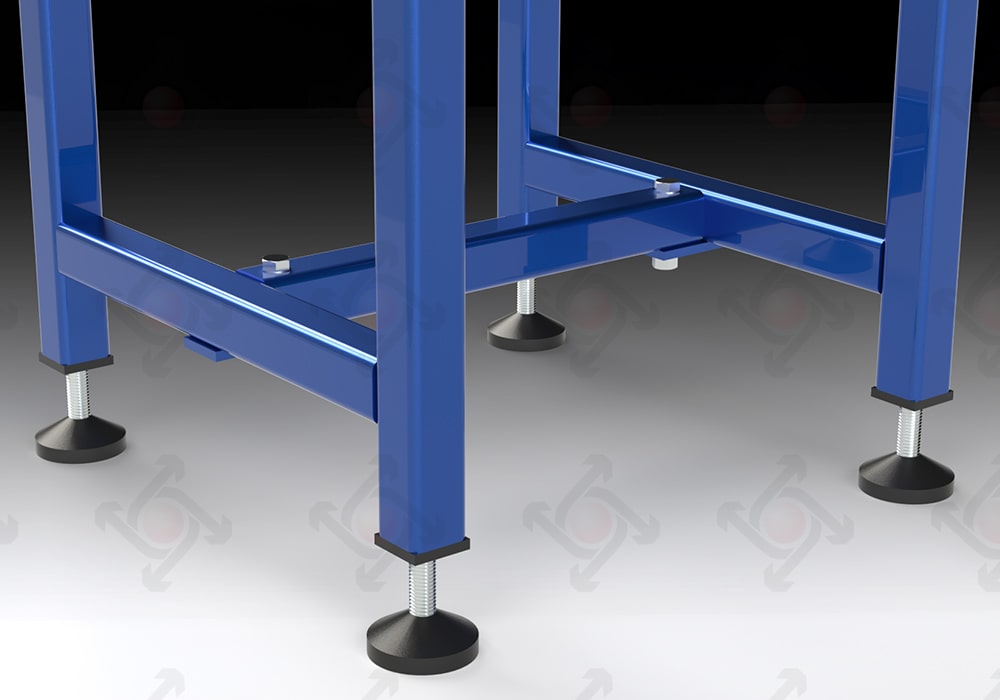

Overall Height (mm) 800 - 950 (adjustable feet) 820 - 950 (adjustable feet) 800 - 950 (adjustable feet)
Length (mm) 300 450 600
Width (mm) 300 450 600
Pitch spacing (mm) 75 75 75
Ball Material Carbon Steel Carbon Steel Carbon Steel
Load Ball Diameter (mm) 25.4 25.4 25.4

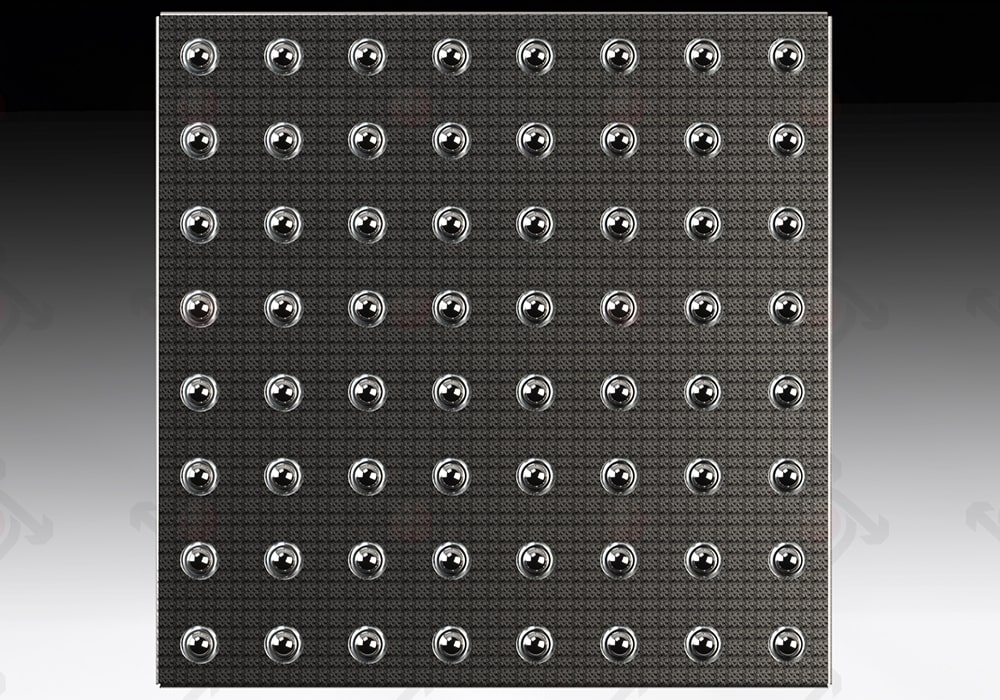

Number of ball units 16 36 64
Effective load per ball (kg) 55 55 55
Total load capacity (kg) 82.5 165 220
Weight (kg) 17.6 28.93 40.04
Supplied Fully Assembled / Partially Assembled Fully Assembled / Partially Assembled Fully Assembled / Partially Assembled
